Whole House Air Handlers & Coils

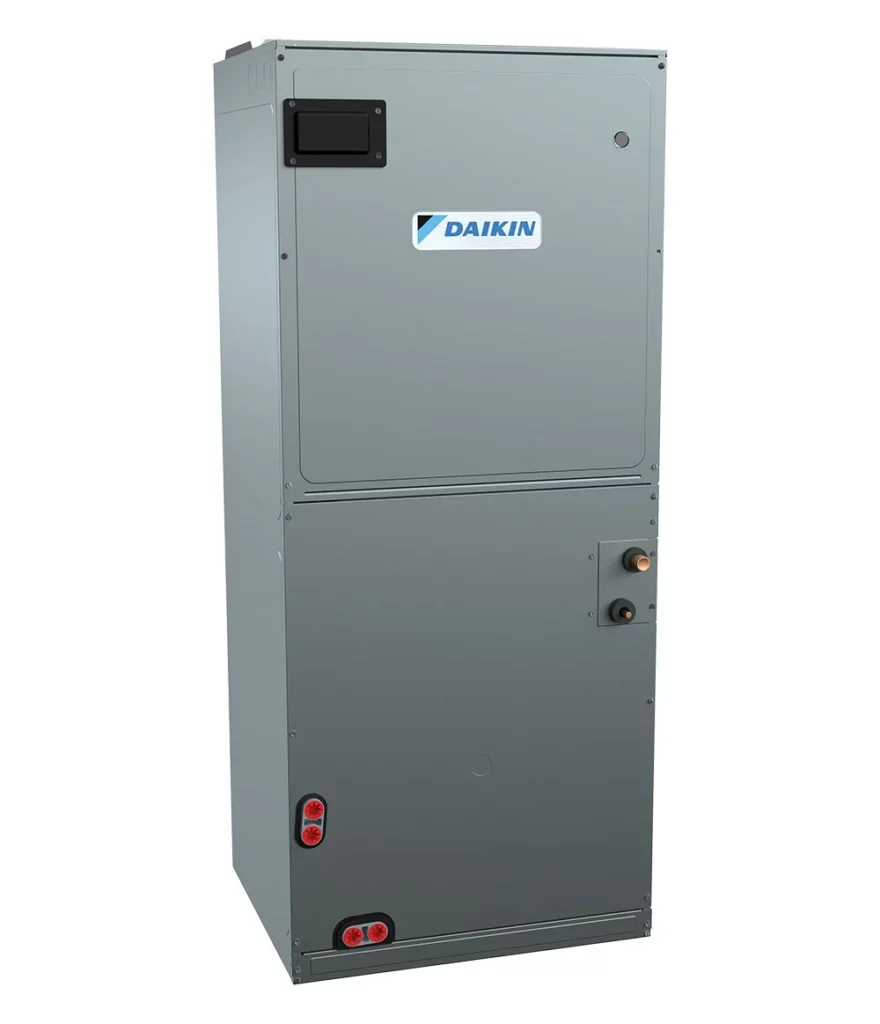

The Daikin brand DVFEC Multi-Position, Variable-Speed, Communicating Air Handler with Internal EEV is made for the Daikin Fit system. This unit’s ECM indoor blower motor allows for a soft start and stop, offering a quiet, efficient operation.



Smart Thermostat
The first smart thermostat to offer full two-way communications with Daikin HVAC systems.

Interested in this product?

Motor Type Variable-Speed ECM
Price Tier $$


  • Electronic Expansion Valve (EEV) for cooling and heat pump applications.
  • 7mm evaporator coil tube size
  • Variable-speed ECM blower motor
  • Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • The thermostat provides adjustable low CFM for efficient fan-only operation
  • All-aluminum evaporator coil
  • Fault recall of six most recent faults
  • Improved humidity and comfort control
  • AHRI certified; ETL listed
  • Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage was less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
  • 3 kW – 25 kW electric heater kits
  • Horizontal or vertical configuration capabilities
  • 21 inch depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back help to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized and leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access


Capacity (Tons) 2 to 5 Tons
Installation Options Multi-Position
Factory-Mounted EEV
Motor Type Variable-Speed ECM
R-410A Refrigerant Compatible


*To receive the 12-Year Parts Limited Warranty, online registration must be completed within 60 days of installation.
